One-stop design service
Application-driven, integrating design resources and serving product innovation

The company has a strong software and hardware R&D team, with network communication technology and smart home overall solutions as the core, and develops a variety of video matrices, signal transmission, signal conversion, picture splicing, centralized control, education control all-in-one machines, and digital audio in the audio and video field. Power amplifier, in the field of network communications and technology research and development of smart home products, among which wireless products, switch products and smart home gateways have reached the international leading level; The company has always adhered to independent research and development, independent manufacturing, and independent marketing, and is committed to providing optimal solutions for all walks of life, and providing high-quality, cost-effective overall solutions for the public's growing network usage needs in life, work, and entertainment;

For more plan details, please feel free to contact us

Tel:0755-23309260,13026600107     Email:monkey@monkeychips.cn

Service Content

fangan-1l-icon-1

Product definition

fangan-1l-icon-2

Software design

fangan-1l-icon-3

Hardware LAYOUT

fangan-1l-icon-4

Small batch trial production

fangan-1l-icon-5

Mold prototype

fangan-1l-icon-6

System Block Diagram

fangan-1l-icon-7

Hardware Design

fangan-1l-icon-8

Proofing hardware

fangan-1l-icon-9

Mass production

fangan-1l-icon-10

Testing and certification

Case display

fangan-2l-jpg-1

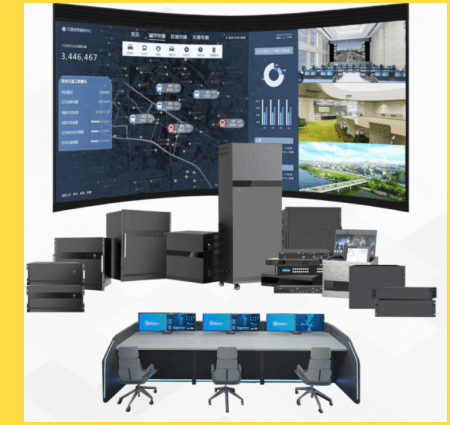

The EMX distributed series makes full use of advanced technologies such as audio and video processing technology, network technology, visualization technology, and centralized control to build a data transmission network as a link and a network system as a support. It integrates audio processing, video splicing processing, and KVM collaboration. A device that integrates multiple functions such as management, POE power supply, centralized control, and encoding and decoding, and has the characteristics of distributed, networked, visualized, and decentralized servers; the product design fully considers synchronization, real-time, and compatibility in video processing performance, breathing effect, color reproduction and other key performances; and supports LCD, LED and DLP splicing screens, supports 0/IRRS232, RELAY, RS485, TCP, UDP and other external control methods, providing degradation for various high-definition video application scenarios. Comprehensive solution with low cost, easy wiring, visual control, decentralized operation and integrated central control;

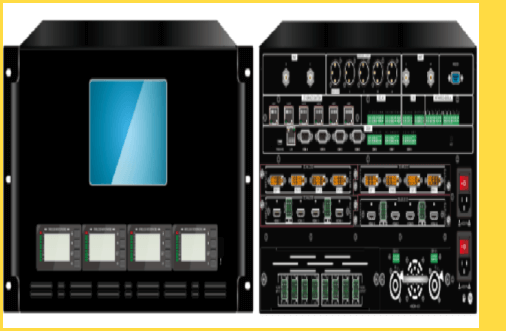

DMX8-D intelligent conference all-in-one machine is a centralized conference audio and video processing equipment specially designed for small and medium-sized conferences. It has the ability to centrally process 4K and 1080P video seamless switching; it has powerful audio processing capabilities and can be connected to the conference room. The wireless MIC speech system comprehensively processes conference audio and video; at the same time, the intelligent all-in-one machine has powerful central control centralized processing capabilities, and unified management of audio, video, and environmental equipment through the central control system; the intelligent all-in-one machine is a highly integrated machine with strong processing capabilities , a highly adaptable small and medium-sized conference audio and video management platform, one-stop solution to the audio and control management needs of small and medium-sized conferences; modular design, plug-in structure: wireless microphone module, central control module, video module and signal card, audio Module, power module, power amplifier module, touch screen: functional diversity: central control host system, video switching function, audio switching and processing system, power amplifier amplification system, network control system, wireless microphone conference system supports HDMI, DV1, SD1VGA, HDBaseT , AV, optical fiber and other single-card four-way seamless boards, and can be matched at will to improve system flexibility;

HDBaseT, AV, optical fiber and other single-card four-way seamless boards can be matched at will to improve system flexibility;

fangan-2l-jpg-2

Program features

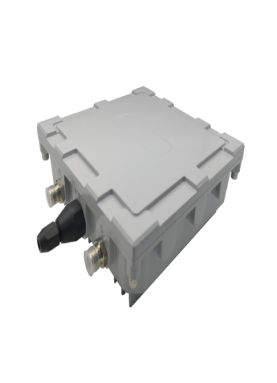

APE601AC

Qualcomm chip

wireless standards: IEEE802.11 a/b/g/n/ac

Wireless speed: 1750Mbps

Transmit power (dBm): 26dBm

port type: 1*10/100/1000M network port

Rated input: 802.3at POE+48V/0.5A

Coverage: about 5 kilometers

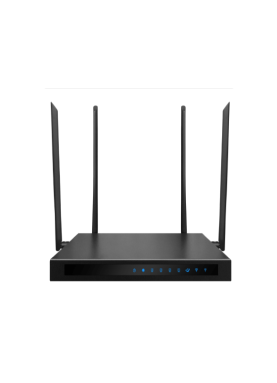

R619AC

Qualcomm chip

wireless standards: IEEE802.11 a/b/g/n/ac

Wireless speed: 1300Mbps

Transmit power (dBm): 26dBm

port type: 5*10/100/1000M network port

Other interfaces: 1*USB 3.0, TF card

Rated input: 12V/2A

4G module: Support 4G network expansion (customized)

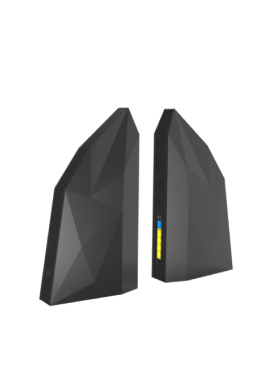

AXR2100

Qualcomm chip

wireless standards: IEEE802.11 a/b/g/n/ac

Wireless speed: 1750Mbps

Transmit power (dBm): 18dBm

port type: 2*10/100/1000M LAN port 1*10/100/1000M WAN port

Power consumption: 12W

Support input voltage: 12V/3A

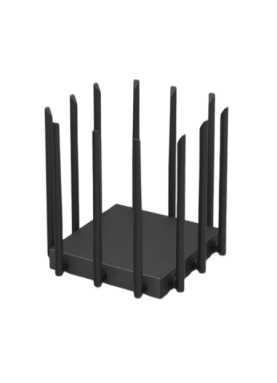

R874AX

Qualcomm chip

wireless standards: IEEE802.11 a/b/g/n/ac

Wireless speed: 6000Mbps

Transmit power (dBm): 20dB 24dB

port type: 10/100/1000M adaptive

Other interfaces: USB3.0/Reset/1*PCIE

Rated input: 12V/2A

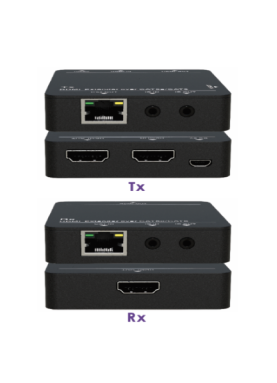

CE-EX70

· 080p,HDCP 1.4 compliant

· Max up to 55m@1080p.

· One HDMl loop out on Tx.

· One way PoC,from Tx to Rx.

· Supports built-in EDID

· Bi-directional IR pass-through.

· PSU: DC5V 1A.

· Chassis dimension: W66 x H16.8 x D66mm

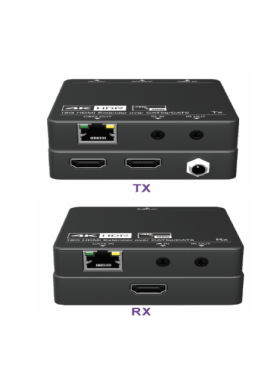

NPG-EX60-H2

· 18G,HDCP 2.2, 4K@60 4:4:4, HDR

· 70m@4K,80m@1080p.

· HDMl output on Tx.

· 4K to 1080p downscaling on Rx.

· One way PoC,from Tx to Rx.

· Bi-directional IR & EDID management

· PSU: DC12V 1A, lcking DC

· Chassis dimension: W80 x H16.8 x D80mm

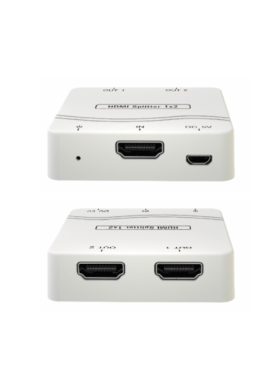

TS-SP1x2

· 1HDMI input, 2 HDMI outputs

· Built-in signal equalizer for long distance transmission.

· Powered by Micro USB.

· Chassis dimension: W62 x H16.5 x D62mm

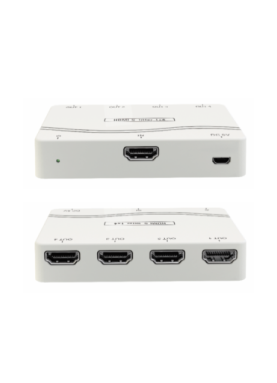

TS-SP1x4

· 1 HDMI input, 4 HDMI outputs

· Built-in signal equalizer for long distance transmission.

· Powered by Micro USB.

· Chassis dimension: W95 x H16.5 x D62mm.
